System overview
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

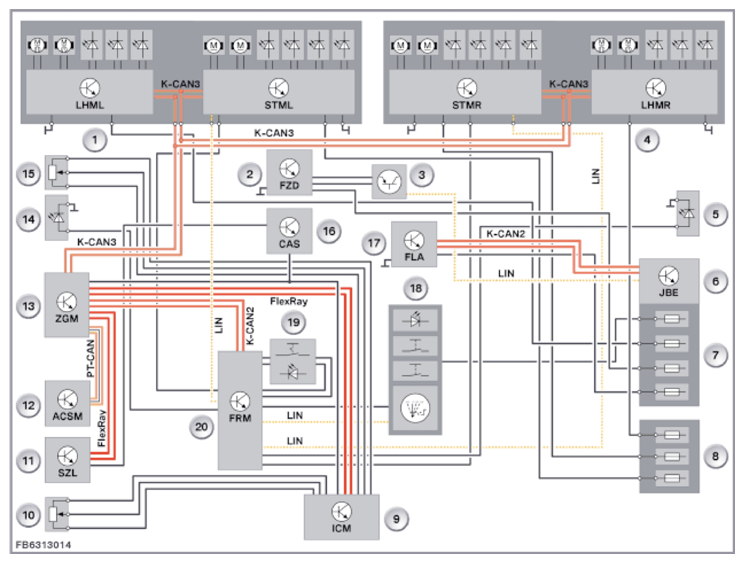

The following graphic shows the system network of the LED headlight using the example of F10.
| Item | Explanation |
|---|---|
| 1 | Left LED headlight, with left-hand headlight driver module (STML) and LED main light module on the left (LHML) |
| 2 | Roof function center (FZD) |
| 3 | Rain-light-solar-condensation sensor |
| 4 | Right LED headlight, with right headlight driver module (STMR) and LED main headlight module on the right (LHMR) |
| 5 | Side turn indicator, right |
| 6 | Junction Box Electronics (JBE) |
| 7 | Power distributor in junction box |
| 8 | Power distribution box, rear |
| 9 | Integrated chassis management (ICM) |
| 10 | Ride height sensor, rear |
| 11 | Steering column switch center (SZL) |
| 12 | Crash Safety Module (ACSM) |
| 13 | Central gateway module (ZGM) |
| 14 | Side turn indicator, left |
| 15 | Ride height sensor, front |
| 16 | Car access system (CAS) |
| 17 | High beam assistant (FLA) |
| 18 | Operating facility for light |
| 19 | Hazard warning switch |
| 20 | Footwell module (FRM) |

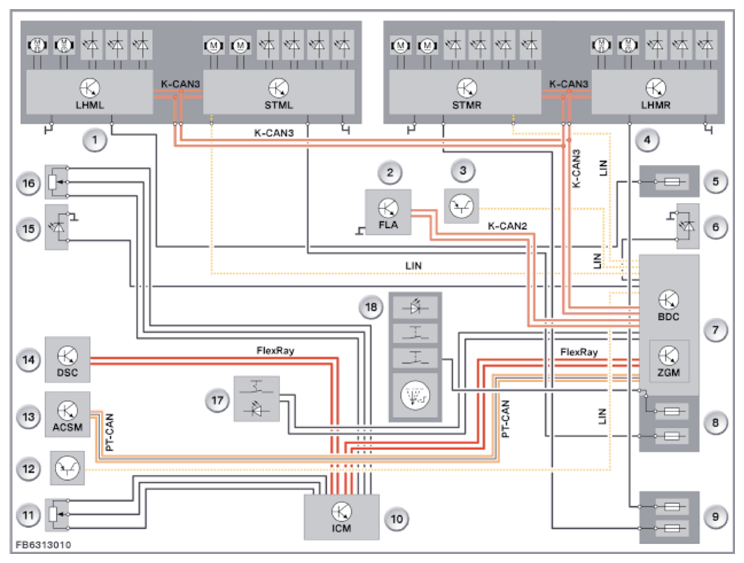

The following graphic shows the system network of the LED headlight using the example of F15.
| Item | Explanation |
|---|---|
| 1 | Left LED headlight, with left-hand headlight driver module (STML) and LED main light module on the left (LHML) |
| 2 | High beam assistant (FLA) |
| 3 | Rain-light-solar-condensation sensor |
| 4 | Right LED headlight, with right headlight driver module (STMR) and LED main headlight module on the right (LHMR) |
| 5 | Front fuse and relay module |
| 6 | Side repeater in the right exterior mirror |
| 7 | Body Domain Controller (BDC), central gateway module (ZGM) integrated as independent control unit |
| 8 | Fuses on the Body Domain Controller (BDC) |
| 9 | Power distribution box, rear |
| 10 | Integrated chassis management (ICM) |
| 11 | Ride height sensor, rear |
| 12 | Steering column switch cluster |
| 13 | Crash Safety Module (ACSM) |
| 14 | Dynamic stability control (DSC) |
| 15 | Side repeater in the left exterior mirror |
| 16 | Ride height sensor, front |
| 17 | Hazard warning switch |
| 18 | Operating facility for light |
