Rain-light-solar-condensation sensor
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The light sensor detects the ambient brightness and the brightness of the frontal light. The signal is transmitted as a message on the LIN bus to the junction box electronics (JBE) or the Body Domain Controller (BDC).
The junction box electronics (JBE) adopt the signals into the corresponding CAN message and send this in cycles (signal values unchanged) or event-controlled (signal values changed). This provides the footwell module (FRM) with the request to switch the driving lights on or off when the automatic driving lights control is activated.

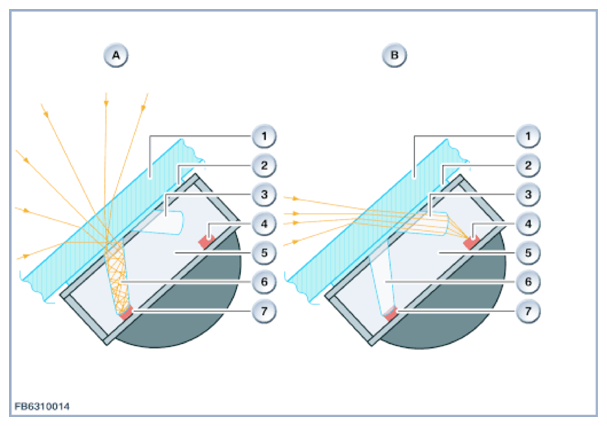

The 2 light sensors (forward light sensor and ambient light sensor) register ambient brightness and monitor the lighting ahead of the vehicle.
| Item | Explanation |
|---|---|
| A | Ambient brightness |
| B | Forward lighting intensity |
| 1 | Windscreen |
| 2 | Bonding surface |
| 3 | Forward lighting sensor optics |
| 4 | Forward lighting sensor receiver diode |
| 5 | Rain-light-solar-condensation sensor |
| 6 | Ambient light sensor optics |
| 7 | Ambient light sensor receiver diode |
