KAFAS: Camera-based driver support systems
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
Depending on the options fitted, various camera-based systems are available. The light points, light colors and light intensities picked up by the video camera are evaluated by the KAFAS control unit. The evaluation by the KAFAS control unit results, among other things, in a recommendation to switch on or off the high-beam assistant. Technically, the system is implemented with a joint camera and a joint control unit, the KAFAS control unit.

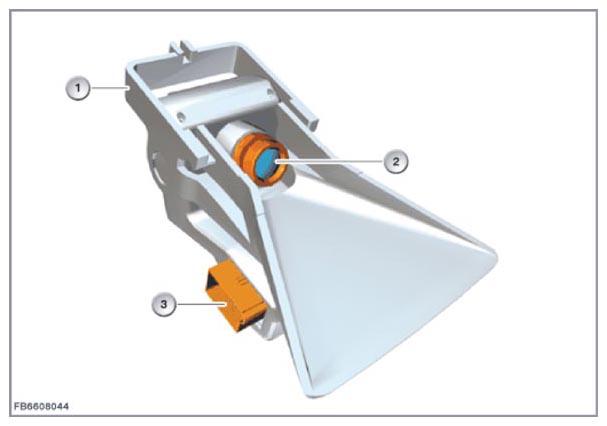

| Item | Explanation |
|---|---|
| 1 | Camera holder |
| 2 | Camera |
| 3 | 10-pin plug connection |
