Exterior lighting: Taillamp
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The rear lights are split into two parts. The part with the turn indicators is fitted in the outer side wall. The part with the reversing lights and the rear fog light is fitted in the tailgate. All lighting functions in the rear lights apart from the rear fog lights and reversing lights are carried out by LEDs. The lighting functions are:
- Tail light
- Brake light
- Turn indicator
- Side-marker light
- Reversing lights
- Rear fog light (European market version)
- Brake Force Display (US national-market version)

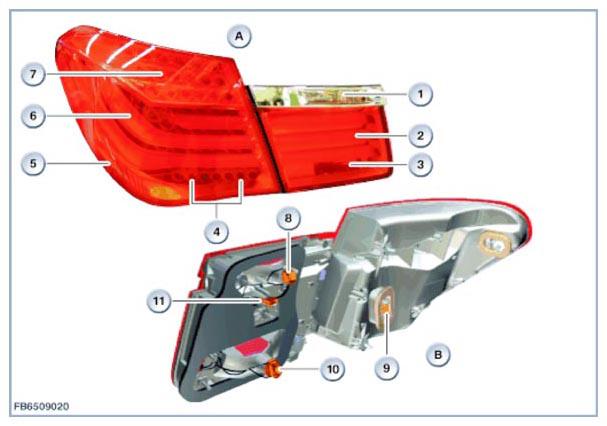

The following graphic shows the distribution of the lights using the left rear light of the F13 as an example.
| Item | Explanation |
|---|---|
| A | Front of left rear light, outer and inner (right rear light is a mirror-image) |
| B | Rear of left rear light, outer and inner (right rear light is a mirror-image) |
| 1 | Reversing lights |
| 2 | Tail light, inner |
| 3 | Rear fog light (European market version) Brake light (US market version) |
| 4 | Outer brake light |
| 5 | Reflector |
| 6 | Tail light, outer Side marker light (US national-market version) |
| 7 | Turn indicator |
| 8 | Reversing light plug connection |
| 9 | Six-pin plug connection for outer rear light |
| 10 | Rear fog light plug connection |
| 11 | Four-pin plug connection for inner rear light |
