System overview
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

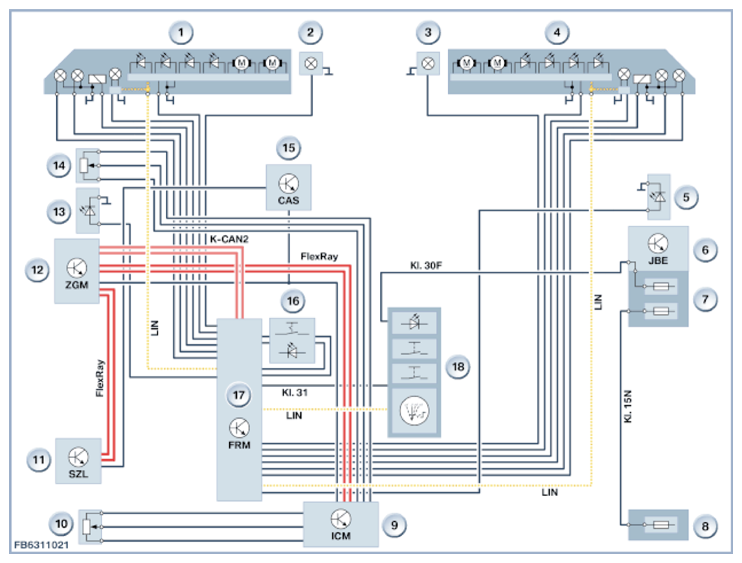

Front exterior lights with automatic headlight beam throw adjustment
| Item | Explanation |
|---|---|
| 1 | Left headlight |
| 2 | Left fog light |
| 3 | Right fog light |
| 4 | Right headlight |
| 5 | Side turn indicator, right |
| 6 | Junction Box Electronics (JBE) |
| 7 | Junction box electronics (JBE) power distribution box |
| 8 | Power distribution box |
| 9 | Integrated chassis management (ICM) |
| 10 | Ride height sensor, rear |
| 11 | Steering column switch center (SZL) |
| 12 | Central gateway module (ZGM) |
| 13 | Side turn indicator, left |
| 14 | Front ride height sensor |
| 15 | Car access system (CAS) |
| 16 | Hazard warning switch |
| 17 | Footwell module (FRM) |
| 18 | Operating facility for light |

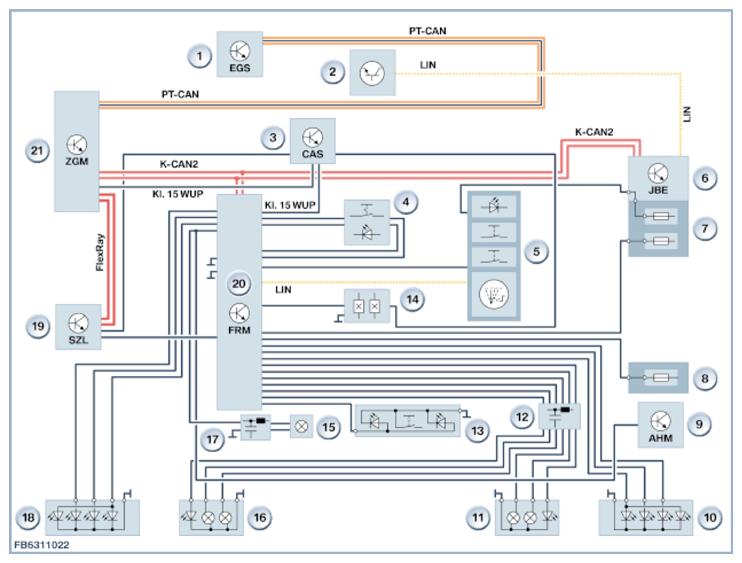

Exterior lighting, rear
| Item | Explanation |
|---|---|
| 1 | Electronic transmission control (EGS) |
| 2 | Rain-light-solar-condensation sensor |
| 3 | Car access system (CAS) |
| 4 | Hazard warning switch |
| 5 | Operating facility for light |
| 6 | Junction Box Electronics (JBE) |
| 7 | Junction box electronics (JBE) power distribution box |
| 8 | Power distribution box, rear |
| 9 | Trailer Module (AHM) |
| 10 | Rear light, outer right |
| 11 | Rear light, inner right |
| 12 | Interference-suppression filter |
| 13 | Number plate light |
| 14 | Brake light switch |
| 15 | Additional brake light |
| 16 | Rear light, inner left |
| 17 | Interference-suppression filter |
| 18 | Rear light, outer left |
| 19 | Steering column switch center (SZL) |
| 20 | Footwell module (FRM) |
| 21 | Central gateway module (ZGM) |
