Operating facility for light
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The exterior lights can be switched on and off at the operating facility for lights.

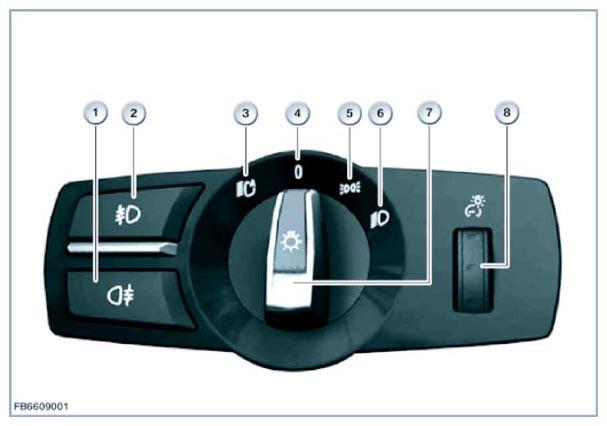

The operating facility for lights includes both the light switch and other components.
| Item | Explanation |
|---|---|
| 1 | Rear fog light switch (not US version) |
| 2 | Front fog light switch |
| 3 | "Position Auto" for automatic driving lights control (optional equipment) |
| 4 | "Position 0" for daytime driving lights |
| 5 | "Position 1" for side lights |
| 6 | "Position 2" for driving lights |
| 7 | Rotary switch for lighting functions |
| 8 | Dimmer for instrument lighting |
The following table shows which terminals must be active before the exterior lights can be switched on.
| Lighting function | Activated with: | Terminal |
|---|---|---|
| Side lights | Light switch "Position 1" | "Terminal 30F on" |
| Daytime driving lights | Light switch "Position 0" or "Position AUTO" | "Terminal 15 on" |
| Driving light | Light switch at "Position 2" or "Position AUTO" | "Terminal 15 on" |
| High-beam headlight | Briefly press the turn signal/high beam switch forward | "Terminal 15 on" |
| Headlight flasher | Pull the turn signal/high beam switch towards the rear | "Terminal R ON" |
