Junction Box Electronics (JBE)
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The Junction Box Electronics (JBE) requests information on ambient brightness from the rain-light-solar-condensation sensor through the LIN bus. The Junction Box Electronics (JBE) module transmits the status via K CAN2. The footwell module (FRM) assesses the status of the ambient brightness.

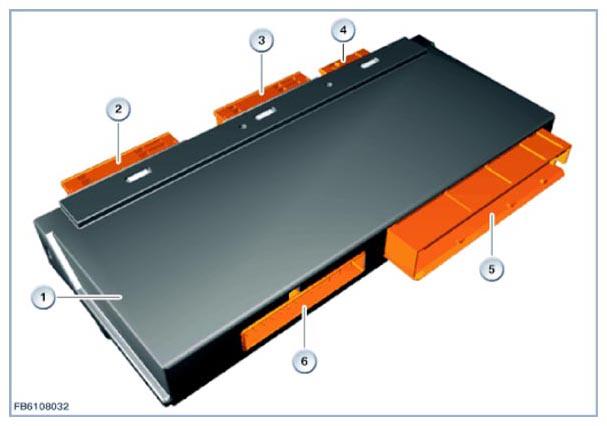

| Item | Explanation |
|---|---|
| 1 | Junction Box Electronics (JBE) |
| 2 | 54-pin plug connection |
| 3 | 54-pin plug connection |
| 4 | 18-pin plug connection |
| 5 | 47-pin plug connection |
| 6 | 23-pin plug connection |
