Integrated chassis management (ICM)
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
Data from ride height sensors at the front and rear axle is evaluated by the Integrated Chassis Management (ICM). The automatic headlight beam throw adjustment thus ensures that oncoming traffic is not dazzled. In addition to the sensors for driving dynamics control, the Integrated Chassis Management (ICM) includes a longitudinal and a lateral acceleration sensor for impact detection. Two wires provide a direct connection between the Integrated Chassis Management (ICM) and the Crash Safety Module (ACSM) for transmission of the sensor signals. The footwell module (FRM) receives signals from the Integrated Chassis Management (ICM) through the K-CAN2. Within the central gateway module (ZGM) the FlexRay transfers the signal to K CAN2.

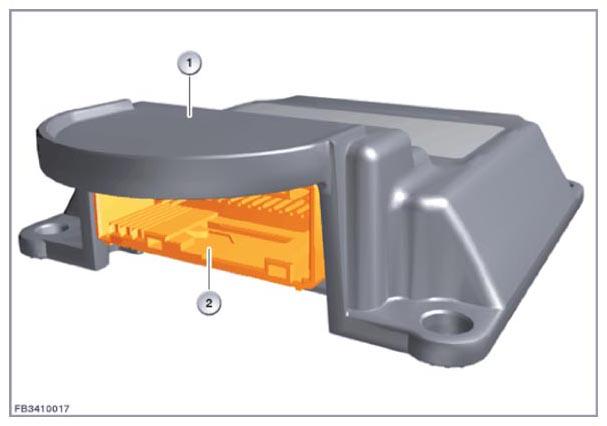

| Item | Explanation |
|---|---|
| 1 | ICM control unit |
| 2 | 54-pin plug connection |
