Exterior lighting: Headlight
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

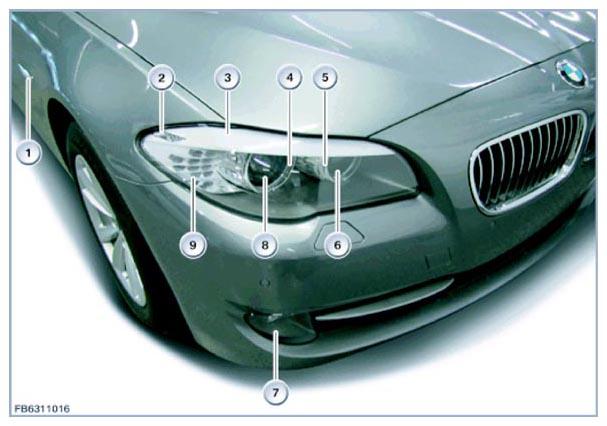

The headlights are fitted above the bumper panel. The turn indicators and side marker lights are integrated in the headlights. The following graphic shows the headlight using the example of F10 with bi-xenon headlight.
| Item | Explanation |
|---|---|
| 1 | Side wall turn indicator |
| 2 | Side-marker light |
| 3 | Positioning light |
| 4 | Lighting ring for side lights and daytime driving lights in the low-beam headlight |
| 5 | Lighting ring for side lights and daytime driving lights in the high-beam headlight |
| 6 | High beam headlight |
| 7 | Fog lights |
| 8 | Bi-xenon headlight for low-beam headlight |
| 9 | LED flashing turn indicators |

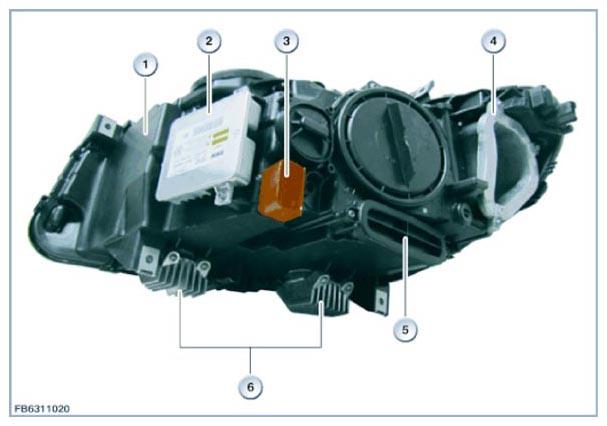

The following graphic shows the rear side of the bi-xenon headlight.
| Item | Explanation |
|---|---|
| 1 | Headlight housing |
| 2 | Xenon control unit |
| 3 | 12-pin plug connection |
| 4 | LED turn indicator heat sink |
| 5 | Headlight driver module |
| 6 | Heat sink for the lighting rings |
