Footwell module (FRM)
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
All functions of the exterior lights are controlled by the footwell module (FRM).
The footwell module (FRM) receives many input signals that cause the headlights to be switched on. The footwell module (FRM) forms the interface to the instrument cluster (KOMBI). It enables communication between the LIN bus and the K-CAN and therefore message transmission to the respective other data bus.

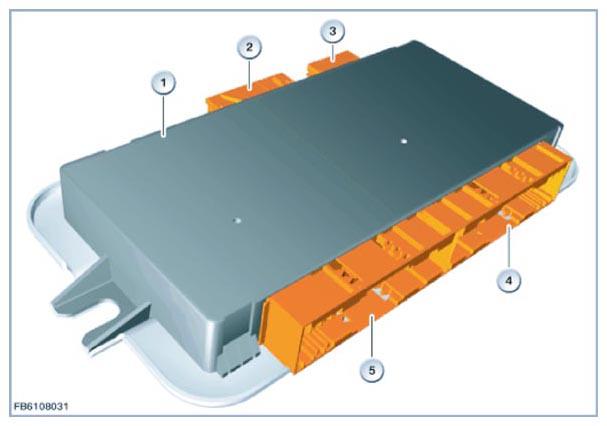

| Item | Explanation |
|---|---|
| 1 | Footwell module (FRM) |
| 2 | 26-pin plug connection |
| 3 | 12-pin plug connection |
| 4 | 51-pin plug connection |
| 5 | 51-pin plug connection |
