Controller (CON)
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The controller (CON) is connected to the central information display (CID) via the body CAN. The controller (CON) is the central operating element for all vehicle functions that can be selected and configured on the central information display (CID). The control panel and control unit of the controller (CON) have been combined in one single component.
There are 7 fixed selector keys arranged around the controller. These selector keys now enable selection of half of all the submenus.
Specific vehicle functions can be selected and adjusted at the Central Information Display (CID). All of the functions in the exterior lights system can be selected and adjusted using the controller (CON) in the Central Information Display (CID):
- Daytime driving lights
- Duration of headlight courtesy delay feature
- Optional central locking system feedback signal
- Welcome lights
- One-touch flashing

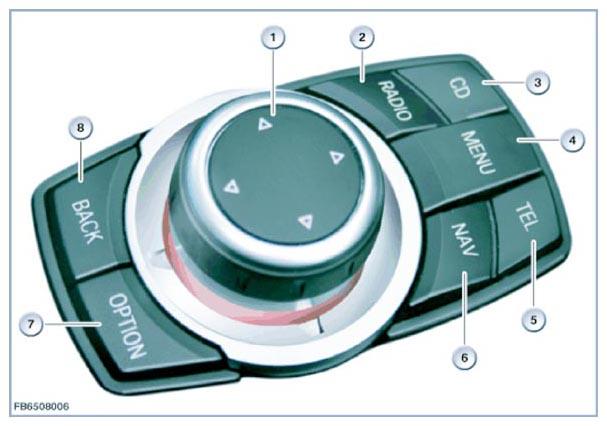

| Item | Explanation |
|---|---|
| 1 | Controller (CON) operating facility |
| 2 | Selector key for "radio" |
| 3 | "CD and multimedia" selector key |
| 4 | "Main menu" selector key |
| 5 | "Telephone" selector key |
| 6 | "Navigation" selector key |
| 7 | "Options" selector key |
| 8 | "Back" selector key |
