LRR: long-range sensor

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

LRR stands for Long Range Radar.

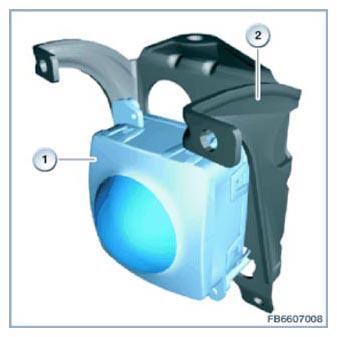

Fig 1: Identifying Long-Range Sensors And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Explanation
1	long-range sensor
2	Holder

The long-range sensor (former ACC sensor) is a radar sensor. At the same time, the long-range sensor is a control unit. This means the long-range sensor has a control unit address and can be diagnosed and programmed.

A long-range sensor senses the distance, angle as well as speed of moving objects. The area covered is up to 150 meters ahead of the vehicle. These data are processed in the ICM control unit.
