ACC: Sensor and control unit
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The ACC sensor is integrated in the ACC control unit. The ACC sensor is a radar sensor, which is capable of both long-range detection (up to 200 meters) and short-range detection (up to 60 meters) in front of the vehicle.
The ACC sensor detects the distance, angle and speed of moving objects. The relevant data is processed in the ICM control unit or the LDM control unit.

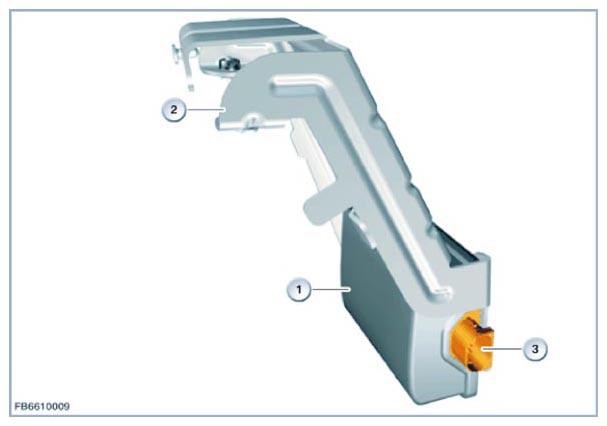

| Item | Description |
|---|---|
| 1 | ACC sensor with ACC control unit |
| 2 | Holder |
| 3 | Eight-pin plug connection |
