11 28 020 Replacing tensioning device for alternator drive belt (N63)

Special tools required:

• 11 0 390

Necessary preliminary work:

• Remove alternator DRIVE BELT

If necessary, remove special tool 11 0 390 .

Release screw (1).

Tightening torque 11 28 1AZ .

Remove belt tensioner with idler pulley (2).

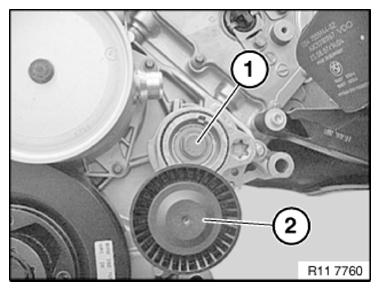

Fig 1: Identifying Belt Tensioner With Idler Pulley And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
