36 10 300 Remove or install front or rear wheel

Special tools required:

36 1 300
81 25 2 344 011
36 1 335
36 1 010

IMPORTANT: Wheel was balanced electronically.
Observe safety information on raising the vehicle.
Adhere to the instructions on initializing the Run Flat Indicator (RPA).
During the installation of all four wheels (e.g. when changing from summer to winter wheels), the tire pressure must be checked!
Observe the notes on tolerance compensation for the tire pressure control!
To avoid tire damage, advise the customer to check the tire pressure on a regular basis (see Owner's Handbook)!

Observe the following procedure to prevent clamping errors and imbalance:

Loosen wheel studs.
Wheel positioned with valve facing down.
If several wheels are simultaneously removed, mark installation position of wheels on tires (e.g. with a piece of chalk).
Mark out wheel to wheel hub.
Mark out lockable wheel stud in relation to wheel.
Unscrew wheel studs. Remove wheel.

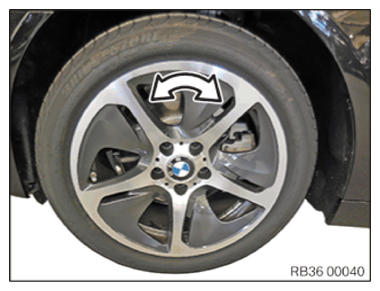

Fig 1: Locating Wheel Studs
Courtesy of BMW OF NORTH AMERICA, INC.

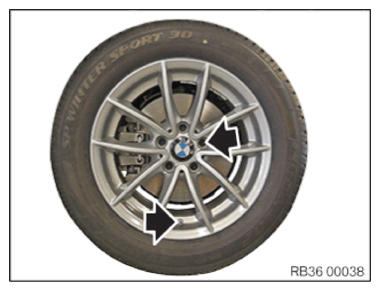

IMPORTANT: Some of the rim styling must be positioned in a certain direction!
Observe direction-of-rotation arrow on the wheel rim.

Fig 2: Checking Wheel Rim Direction-Of-Rotation

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Contact surfaces between:

brake disc and wheel rim,
brake disc and wheel hub,

must be clean and free from grease.

Remove dirt, grease residues and corrosion from contact surface with a drill and special tool 81 25 2 344 011.

IMPORTANT: Do not operate special tool 81 25 2 344 011 with an impact screwdriver!

NOTE: Degrease contact surface with universal cleaner.

NOTE: If there are grease residues in the area of the wheel stud hole, the brake disc must be removed and cleaned.

Fig 3: Removing Dirt, Grease Residues And Corrosion From Contact Surface Using Drill And Special Tool (81 25 2 344 011)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove dirt, grease residues and corrosion from contact surface with a drill and special tool 81 25 2 344 011.

IMPORTANT: Do not operate special tool 81 25 2 344 011 with an impact screwdriver!

NOTE: Degrease contact surface with universal cleaner.

Fig 4: Removing Dirt, Grease Residues And Corrosion From Contact Surface Using Drill And Special Tool (81 25 2 344 011)

Courtesy of BMW OF NORTH AMERICA, INC.

Check brake disc retaining bolt (1) for tight fit.

IMPORTANT: Mounting bolt (1) must not under any circumstances protrude over contact surface (2) between brake disc and wheel rim.

Tightening torque brake disc retaining bolt:

Front axle 34 11 1AZ
Rear axle 34 21 1AZ

Fig 5: Identifying Brake Disc Retaining Bolt And Contact Surface
Courtesy of BMW OF NORTH AMERICA, INC.

Apply a thin coat of GREASE to wheel centering (1) in wheel rim.

Fig 6: Identifying Wheel Centering

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To release and tighten lockable wheel bolts, use a matching adapter from special tool 36 1 300, 36 1 335 or 36 1 010.

Fig 7: Identifying Set Of BMW Wheel Bolt Adapters (36 2 010)

Courtesy of BMW OF NORTH AMERICA, INC.

Clean wheel studs and check threads for damage, replace, if necessary.

Replace rusty wheel studs.

IMPORTANT: Do not apply oil to wheel studs.

IMPORTANT: Under no circumstances use pneumatic or electric screwdrivers to install and tighten the wheel studs.

IMPORTANT: Wheel rim must rest uniformly against the brake disc. In the case of non-original BMW wheel studs/rims it may be necessary to retighten the wheel studs on account of setting properties (refer to manufacturer's documents).

Tightening specifications:

Screw in wheel bolts and evenly tighten crosswise by hand in order to center the wheel rim.
Tighten down wheel studs in crosswise sequence with a calibrated torque wrench to prescribed tightening torque 36 10 1AZ .
Check all the wheel bolts in the same order or retighten to the prescribed tightening torque again.

Fig 8: Identifying Wheel Bolts
Courtesy of BMW OF NORTH AMERICA, INC.
