63 10 014 Adjusting fog lights
Comply with TEST PRECONDITIONS FOR HEADLIGHT ADJUSTMENT .
Necessary preliminary tasks:
- Remove TRIM GRILLE IN BUMPER TRIM
IMPORTANT:
Do not damage adjusting screw when adjusting fog lamp.

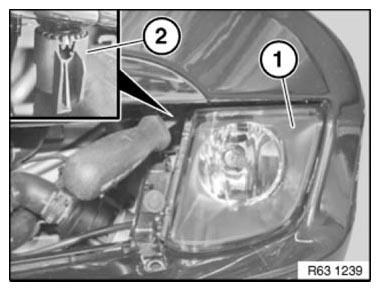

Adjust fog lamp (1) at adjusting screw (2).
