12 52 030 Removing the holder for the control units (S63 B44 T 0)

Necessary preliminary tasks:

Switch off ignition.
Remove ACOUSTIC COVER
Release DME CONTROL UNIT, CYLINDER 1-4 . and set aside, do not remove.
Release DME CONTROL UNIT, CYLINDER 5-8 , and set aside, do not remove.

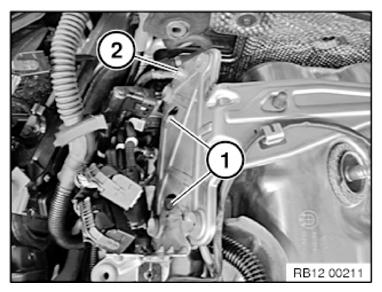

Release screws (1).

Tightening torque 12 52 1AZ .

Release nut (2) and detach ground cable.

Tightening torque 12 52 2AZ .

Fig 1: Identifying Ground Cable Nut And Screws

G09914065

Courtesy of BMW OF NORTH AMERICA, INC.

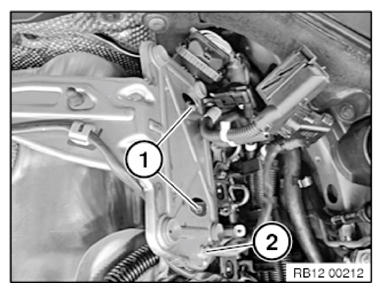

Release screws (1).

Tightening torque 12 52 1AZ .

Release nut (2) and detach ground cable.

Tightening torque 12 52 2AZ .

Fig 2: Identifying Ground Cable Screws

G09914066

Courtesy of BMW OF NORTH AMERICA, INC.

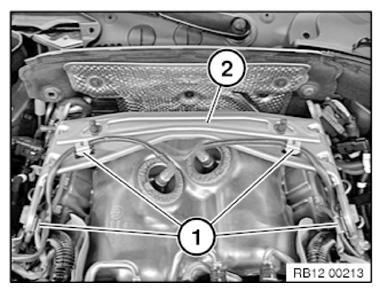

Detach oxygen sensor cable from clamps (1).

Feed out holder for control units (2) and remove.

Fig 3: Identifying Oxygen Sensor Cable From Clamps And Holder For Control Units

G09914067

Courtesy of BMW OF NORTH AMERICA, INC.
