13 54 015 Removing and installing/sealing left throttle body (S63 B44 T 0)

Necessary preliminary tasks:

Release screws (1).

Tightening torque 13 54 1AZ .

Remove throttle body (2) from charge air cooler.

Installation note:

Check plug connection for coolant residues. If necessary, blow clean plug connection with compressed air.

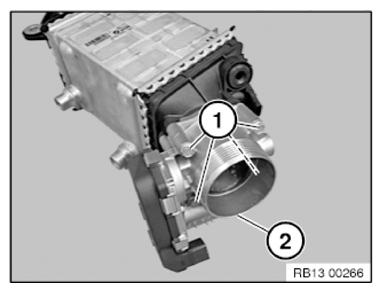

Fig 1: Identifying Throttle Body Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing ring (1) of throttle body (2).

Fig 2: Identifying Throttle Body Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check stored fault message.

Delete fault memory.
