13 51 070 Removing and installing/replacing the right high pressure pump (S63 B44 T 0)
Disconnect NEGATIVE BATTERY TERMINAL (risk of fire due to short circuit on removal).
Electric fuel pump starts up automatically when door is opened!
Carry out installation work on fuel system only with coolant temperature below 40 °C.
Fuel can emerge spontaneously at high speed when the high pressure line is released!
Introduced contaminants can cause malfunctions in the system!
- Do not allow any dirt particles or foreign bodies to get into the system.
- Remove all traces of dirt before removing lines or separate components.
- Use only fluff-free cloths.
- Seal all fuel system openings with protective caps or plugs.
The resistance of the silicone material is reduced significantly by contact with fuel, which may cause the ignition coil to fail!
Cover ignition coil with suitable means.
Necessary preliminary tasks:
- Remove FAN COWL WITH ELECTRIC FAN
- Remove RIGHT CLEAN AIR PIPE
- Remove RIGHT RAIL
Recycling:
Fuel escapes when fuel lines are detached.
Catch and dispose of escaping fuel.
Observe country-specific waste disposal regulations.

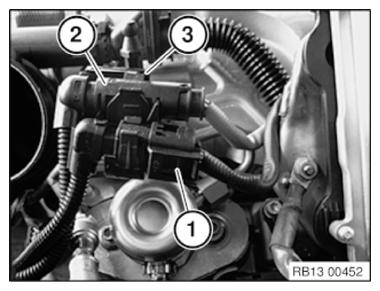

Unlock and detach plug connections (1 and 2).
Release connector holder (3) from bracket and place to one side.
Loosen the ground cable on the holder for the DME control unit.
Tightening torque 12 52 2AZ .
Release nut (1) on right retaining clip.
Tightening torque 13 53 7AZ .
Release fuel feed line (2) on high-pressure pump.
Tightening torque 13 53 4AZ .
Catch and dispose of escaping fuel.
Installation note:
Observe the tightening sequence!
- Tighten the fuel delivery line on the to high pressure pump.
Tightening torque 13 53 4AZ .
- Tighten down retaining clips.
Tightening torque 13 53 7AZ .
Slightly slacken screws (2) of high pressure pump (3). When the high pressure pump is pushed out, the engine must be turned to the bottom dead center at the central bolt of the crankshaft.
Unlock connector (1) and remove.
Unfasten screws (2).
Replace screws. Screws are coated with sealing compound.
Detach high-pressure pump (3) and remove.
Engine oil can escape when pump is detached; have a cleaning cloth ready.
Installation note:
Provisionally fasten screws (1) and tighten uniformly in 90° increments until final tightening.
Tightening torque 13 51 1AZ .
Place depth gauge (1) flat on fuel pump flange (see arrow) (shown on N43 engine).
Turn the engine at the central bolt of the crankshaft until the UT position of the camshaft is reached on the depth measuring slide.
Installation note:
Replace gasket (1).
Clean contact surfaces.
Assemble engine.
Check fuel system for tightness.
Check function of DME.
