13 90 500 Replacing tank venting valve (N63)

Necessary preliminary tasks:

Unlock connector (1) and remove.

Unlock hose (2) and detach.

Unlock hose (3) further below on intake manifold and detach.

Detach tank vent valve (4) from holder and remove.

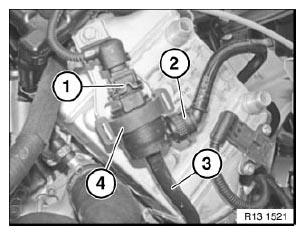

Fig 1: Identifying Tank Vent Valve, Connector And Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock hose (1) on intake manifold and detach.

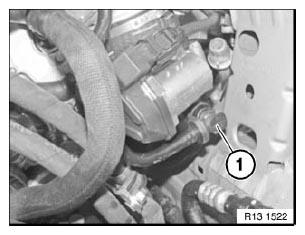

Fig 2: Identifying Intake Manifold Hose

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Read out fault memory of DME control unit.
Delete fault memory.
