11 00... Service engine oil (S63)
Special tools required:
- 11 9 240 .
When carrying out repair work on the vehicle always wear oil- and heat-resistant protective gloves including forearm protection, face guard and protective apron.
Observe the exact engine oil filling capacity.
Overfilling the engine with engine oil will result in engine damage .
Checking and drip-off times (at least 10 minutes) must be observed.
Recycling:
Catch and dispose of drained engine oil in a suitable collecting vessel.
Observe country-specific waste disposal regulations.

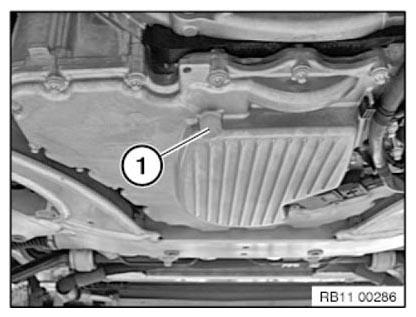

Remove screw plug (1) from oil sump and drain engine oil.
Tightening torque: 11 13 1AZ .
Graphic without reinforcement plate.

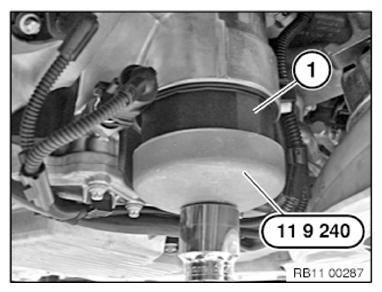

Release oil filter cover (1) with special tool 11 9 240 .
Tightening torque 11 42 1AZ .
Graphic without reinforcement plate.
Installation note:
Replace O-ring and coat with engine oil.

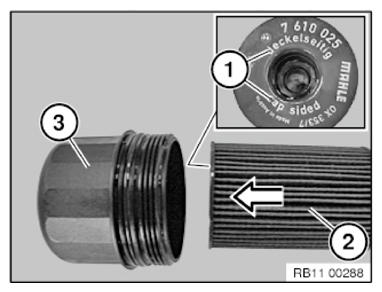

Check identification (1) and fit in correct position.
Replace oil filter element (2) and slide into the oil filter cover.
Oil filter element (2) must snap audibly into place.
Installation note:
Replace sealing ring .
Insert screw plug (1) for oil sump and tighten down.
Tightening torque 11 13 1AZ .
Pour in ENGINE OIL .
Start engine and run at idle speed.
Switch off engine
Check oil filter cover and screw plugs (1) of oil sump for tightness.
Assemble engine.
Checking oil level:
- Park vehicle on a horizontal surface
- Allow engine to run at operating temperature for three minutes with increased engine speed (approx. 1100 RPM)
- Read off oil level in instrument cluster or on control display
- Top up engine oil if necessary
