51 13 061 Replacing Wheel Arch Trim On Front Left Or Right Side Panel (JAPANESE National-Market Version)

IMPORTANT:

The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

IMPORTANT:

For reasons of optimal adhesion, painting of bonding surfaces on the inside of the wheel arch trim is prohibited!
The application of the adhesive pad (double-sided adhesive tape) onto the wheel arch trim must therefore occur prior to painting the wheel arch trim!

= Wheel arch trim primed
= adhesive pad

Fig 1: Wheel Arch Trim Primed And Adhesive Pad
Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

Carefully heat the wheel arch trim (1) with a hot air blower (temperature approx. 40-55 ° C) and pull off.

Fig 2: Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pull protective film off adhesive pad (double-sided adhesive tape).

Attach wheel arch trim (1) to side wall according to specified dimensions and press down firmly.

Measurement a = approx. 2, 0 mm.

Dimension b = approx. 2.5 - 3.0 mm.

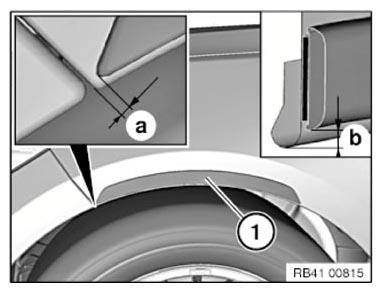

Fig 3: Distance Between Wheel Arch Trim And Side Wall

Courtesy of BMW OF NORTH AMERICA, INC.
