64 22 720 Removing and installing/replacing headlining fresh air grille

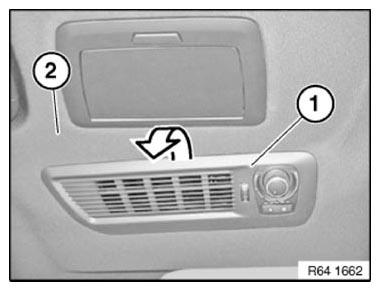

Unclip fresh air grille (1) from roofliner (2) in direction of arrow.

Fig 1: Removing Fresh Air Grille From Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

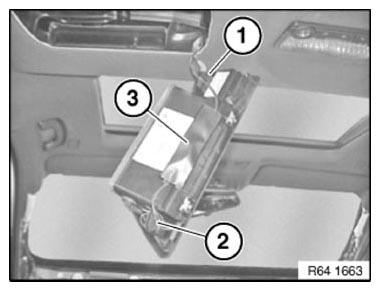

Unlock and detach plug connections (1 and 3).

Installation note:

Make sure lines are correctly laid.

If necessary, replace adhesive tape fastening.

If necessary, replace retaining clasps.

Fig 2: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify CONTROL PANEL FOR REAR COMPARTMENT AIR CONDITIONING .
