64 22 191 Removing and installing/replacing rear cabin fresh-air grille (High A/C system)

Necessary preliminary tasks:

NOTE: Example graphic on the F01.

Release screws (1).

Carefully press rear cabin fresh-air grille (2) forwards out of center console trim (3).

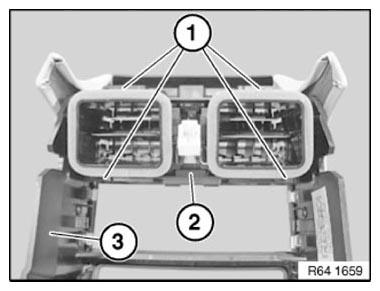

Fig 1: Identifying Rear Cabin Fresh-Air Grille, Center Console Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs (1) must be correctly seated in associated guides (2) and must not be damaged.

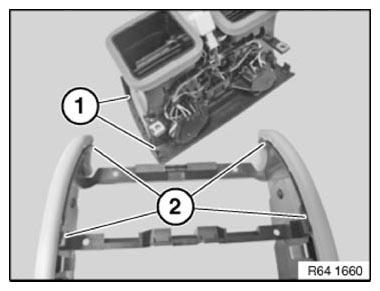

Fig 2: Identifying Guides And Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
