12 00 Removing and installing/replacing the ignition coil cover (N55 Hybrid)
WARNING:
High-voltage system - danger to life!
The following points must be strictly observed prior to starting work:
The following points must be strictly observed prior to starting work:
- Observe SAFETY INFORMATION for handling hybrid cars.

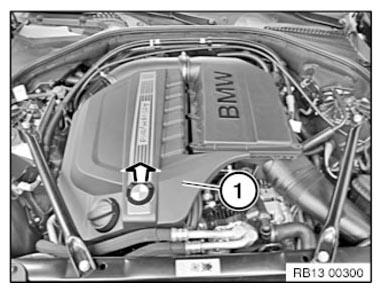

Pull ignition coil cover (1) off of rubber mounts and remove in direction of travel.
Release engine oil cooler lines from ignition coil cover if necessary.
