34 33 505 Removing and installing or replacing brake booster

Necessary preliminary work:

Read and comply with GENERAL INFORMATION .
Remove rear left DOME CROSS-BRACE .
Remove LEFT FOOTWELL TRIM .
In vehicles with coolant expansion tank in the front left side panel: Remove coolant filler neck.

After completing repair work, bleed BRAKE SYSTEM WITH DSC .

Extract brake fluid out of expansion tank.

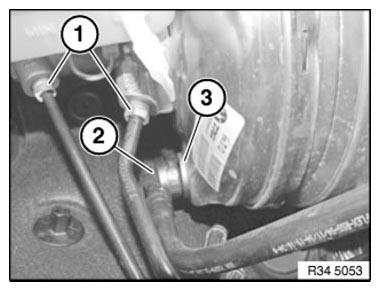

Unfasten brake lines (1).

Installation note:

Tightening torque 34 32 1AZ .

Disconnect vacuum line (2).

Installation note:

Check gasket (3), replace if necessary.

Fig 1: Identifying Brake Lines, Vacuum Line And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

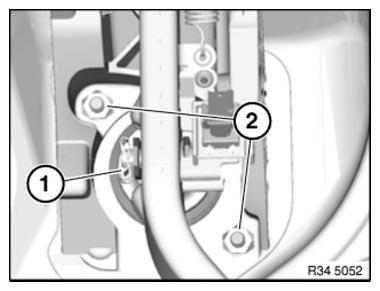

Detach retaining clip (1) on brake pedal. Pull out locking pin.

Unscrew nuts (2).

Installation note:

Replace self-locking nuts.

Tightening torque 35 11 1AZ .

Fig 2: Identifying Brake Pedal Retaining Clip And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not use any force when removing and installing the brake booster; the brake booster can be damaged under certain circumstances.

Brake lines must not be bent.

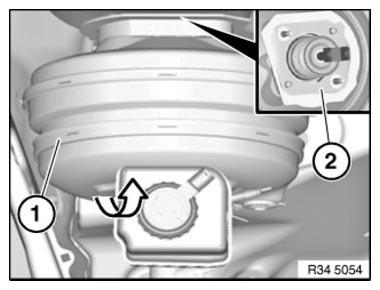

Carefully pull brake booster (1) out of bulkhead and tilt out.

Installation note:

Fig 3: Removing Brake Booster From Bulkhead

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure seal (2) is present and correctly seated.

Replacement:
