51 12 432 Replacing protective strip for bumper, rear middle
Special tools required:
The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.
Removing:

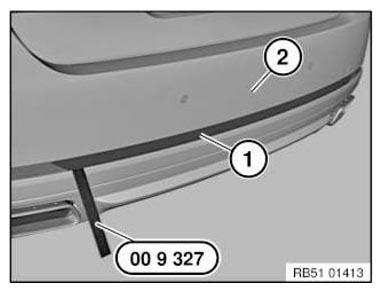

Heat protective strip (1) with a hot air blower and detach with special tool 00 9 327 from bumper panel (2).
Installation:
Clean bonding surface.

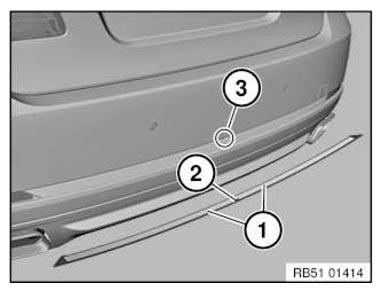

Pull liner* off adhesive tape (1).
Position protective strip over guide (2) in area (3) and stick on.
Press down protective strip with firm thumb pressure over entire bonding surface.
*Liner is the protective film on adhesive tape.
