63 31 150 Removing and installing/replacing glovebox light

IMPORTANT: Follow notes for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

NOTE: Similar to graphic.

Lever out glove box light (1) in direction of arrow.

Unfasten plug connection and disconnect.

Remove glove box light (1).

Replacement:

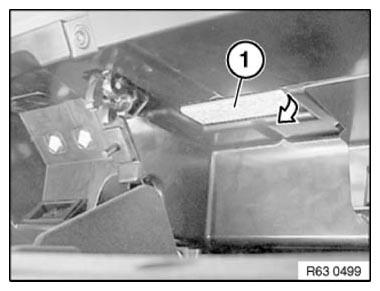

Fig 1: Removing Glove Box Light

G11181838

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, REMOUNT BULB , check BULB TYPE
