63 17 070 Removing and installing left/right fog light
NOTE:
The time value of this job item does not include adjustment of the FOG LIGHTS !
WARNING:
Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS)
Necessary preliminary tasks:
- Remove ORNAMENTAL GRILLE in bumper panel

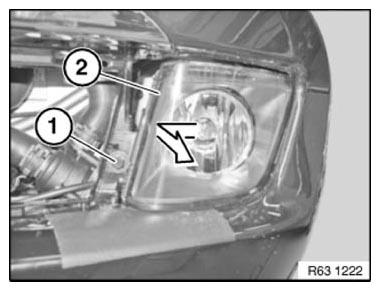

Release screw (1).
Tightening torque 63 12 7AZ .
Remove fog light (2) in direction of arrow.

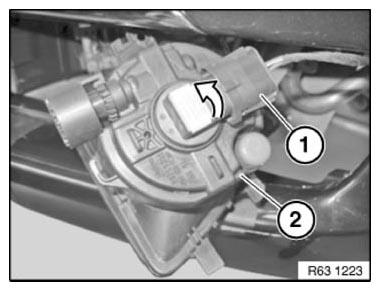

Disconnect plug connection (1) on fog light (2).
Remove fog light (2).
If necessary, turn bulb holder in direction of arrow and remove from fog light (2).
On replacement of fog light or bumper panel at front:
- If necessary, remount bulb, check BULB TYPE
- Adjust FOG LIGHTS
