12 35 010 Removing and installing/replacing torsional vibration damper (electrical machine)

Special tools required:

WARNING: High-voltage system - danger to life!
The following points must be strictly observed prior to starting work:

Necessary preliminary work:

Secure special tool 24 0 200 to automatic transmission (1) at marked position.

Fit automatic transmission (1) with special tool 24 0 200 to special tool 00 2 300 (assembly stand).

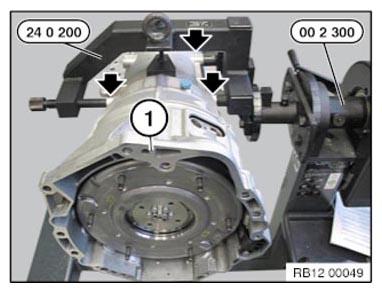

Fig 1: Securing Special Tool (24 0 200) With Automatic Transmission

Courtesy of BMW OF NORTH AMERICA, INC.

Place automatic transmission (2) in vertical position.

Position torsional vibration damper (4) to automatic transmission (2).

Secure special tool 2 297 313 with screw connection (1) to automatic transmission (2) and secure with nut (3) to torsional vibration damper (4).

Release screws of torsional vibration damper (3).

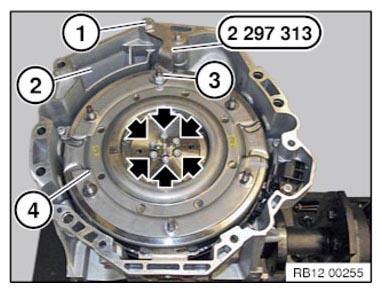

Fig 2: Securing Special Tool (2 297 313) With Automatic Transmission Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 2 297 313 .

Remove torsional vibration damper (4) upwards.

Installation note:

Replace screws.

Observe screw-fitting sequence:

Tightening torque 12 35 3AZ .

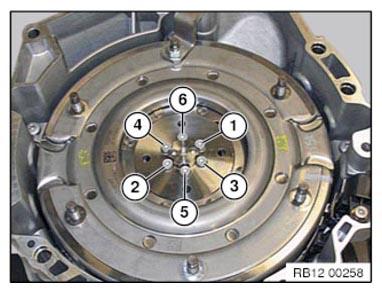

Fig 3: Hybrid Electric Motor Vibration Damper Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clean contact surface (1) from electrical machine to torsional vibration damper.

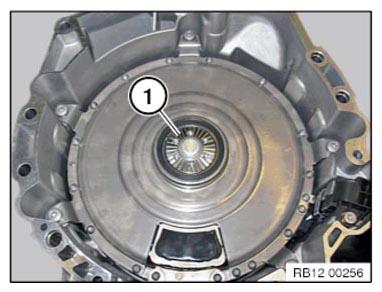

Fig 4: Identifying Electrical Machine Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.
