3.2.2. Top HiFi system

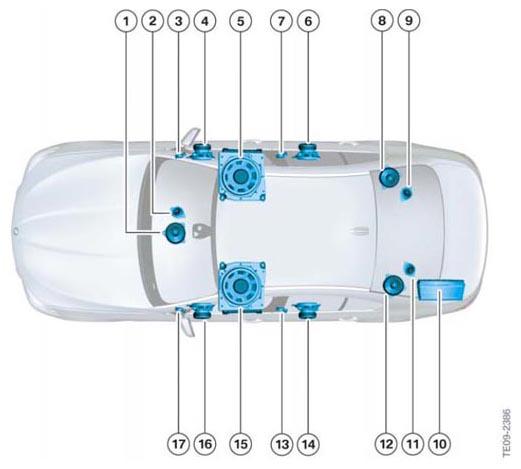

The following graphic shows the speakers and the amplifier of the HiFi System. The speakers are powered with 7 x 50 watts for the midrange speakers and tweeters and 2 x 125 watts for the bass speakers.
In the F10, the amplifier in the HiFi System is equipped with what is known as a load-logic separation. Here, the electronics of the amplifier are supplied and connected via a separate voltage line. The line is specially protected against short-term voltage dips and thus prevents failure of the electronics in the event of a short-term voltage dip.
COMPONENTS DESCRIPTION CHART
| Index | Explanation |
|---|---|
| 1 | Tweeter, front center |
| 2 | Mid-range speaker, front center |
| 3 | Tweeter, front right door |
| 4 | Mid-range speaker, front right door |
| 5 | Woofer, under right front seat |
| 6 | Mid-range speaker, rear right door |
| 7 | Tweeter, rear right door |
| 8 | Mid-range speaker, rear window shelf, right |
| 9 | Tweeter, rear window shelf, right |
| 10 | Top-HiFi amplifier |
| 11 | Tweeter, rear window shelf, left |
| 12 | Mid-range speaker, rear window shelf, left |
| 13 | Tweeter, rear left door |
| 14 | Mid-range speaker, rear left door |
| 15 | Woofer, under left front seat |
| 16 | Mid-range speaker, front left door |
| 17 | Tweeter, front left-door |
