11 61 050 Removing and installing intake plenum (N55)

Necessary preliminary work:

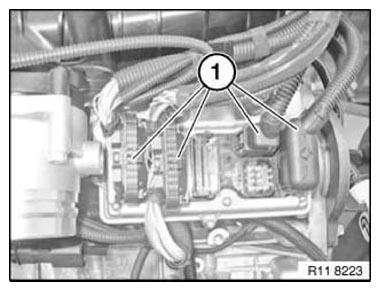

Disconnect all plug connections (1) on engine control unit.

Fig 1: Identifying Engine Control Unit Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

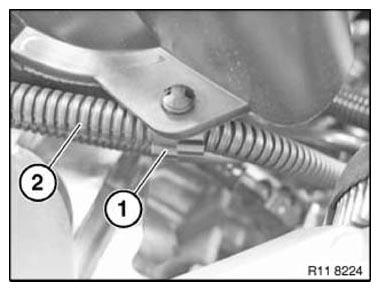

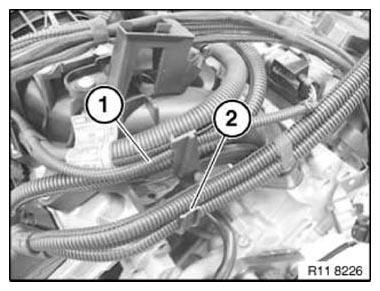

Open retaining clip (1).

Release wiring harness section (2) from retaining clip (1).

Fig 2: Identifying Intake Plenum Wiring Harness Section And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

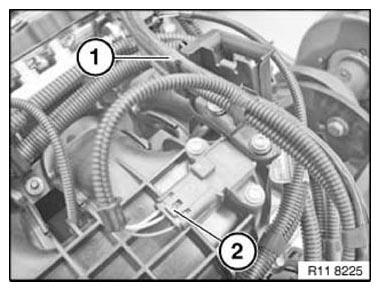

Release all wiring harness sections from holder (1).

Disconnect plug connection (2) at charging pressure sensor.

Fig 3: Identifying Charging Pressure Sensor Plug Connection And Intake Plenum Wiring Harness Section Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release all wiring harness sections from holders (1 and 2).

Fig 4: Identifying Intake Plenum Wiring Harness Holders

Courtesy of BMW OF NORTH AMERICA, INC.

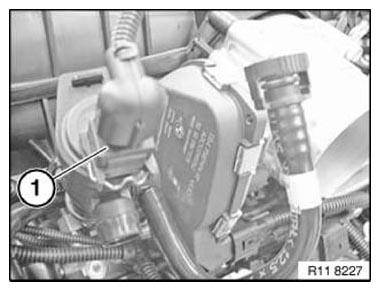

Disconnect plug connection (1) on tank vent valve.

Fig 5: Identifying Tank Vent Valve Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

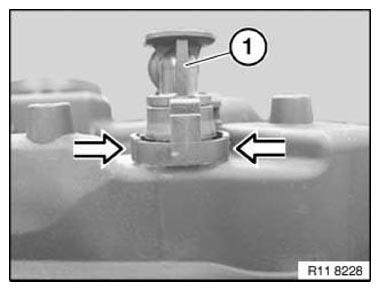

Press and hold down the unlocking device on the vacuum line (1) on the vacuum reservoir (cylinder head cover) in direction of arrow.

Detach vacuum line (1) in upward direction.

Fig 6: Pressing Vacuum Line Unlocking Device

Courtesy of BMW OF NORTH AMERICA, INC.

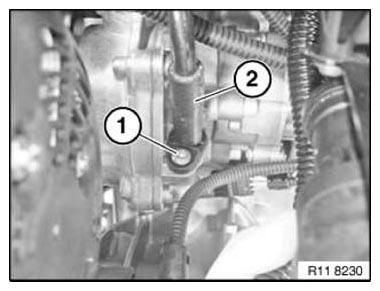

Detach vacuum line (2) in upward direction.

Fig 7: Identifying Vacuum Line And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

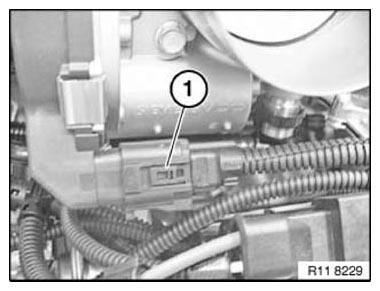

Disconnect plug connection (1) on throttle valve drive.

Fig 8: Identifying Throttle Valve Drive Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

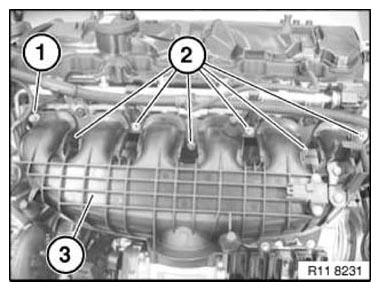

Release screw (1).

Tightening torque: 11 61 2AZ .

Unscrew nuts (2).

Tightening torque: 11 61 1AZ .

Fig 9: Identifying Intake Plenum Screw And Nuts (N55)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace all gaskets.

Assemble engine.
