12 00 Removing and Installing/Replacing Ignition Coil Cover (N55)

Pull Ignition Coil Cover (1) Off of Rubber Mounts and Remove In Direction of Travel.

Release Engine Oil Cooler Lines From Ignition Coil Cover If Necessary.

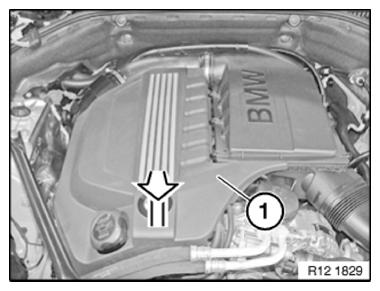

Fig 1: Removing Ignition Coil Cover

Courtesy of BMW OF NORTH AMERICA, INC.
