52 26 000 Removing and installing/replacing left or right rear seat

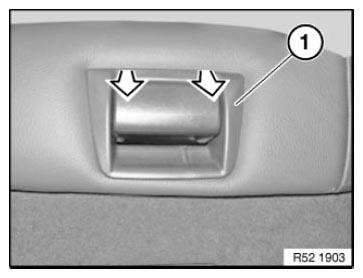

Unclip trim (1) with plastic wedge on upper part to the front.

Installation:

If necessary, replace faulty trim.

Fig 1: Removing Rear Seat Trim

Courtesy of BMW OF NORTH AMERICA, INC.

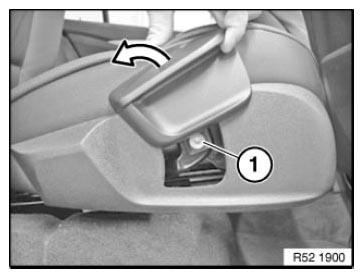

Pull lever for backrest adjustment and release screw (1) below.

Tightening torque 52 26 07AZ .

Fig 2: Removing Backrest Angle Adjustment Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Right rear seat:

Unclip rear seat to the front and pull up.

Installation:

Pull belt buckle through recess in rear seat.

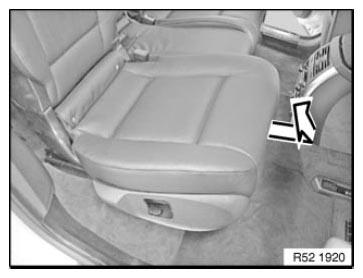

Fig 3: Removing Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

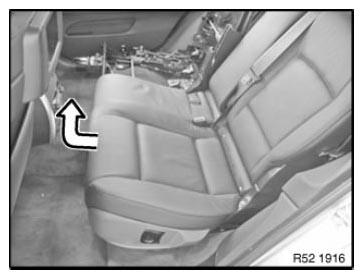

Left rear seat:

Unclip rear seat to the front and pull up.

Installation:

Pull belt buckle through recess in rear seat.

Fig 4: Pulling Rear Seat Belt Buckle

Courtesy of BMW OF NORTH AMERICA, INC.

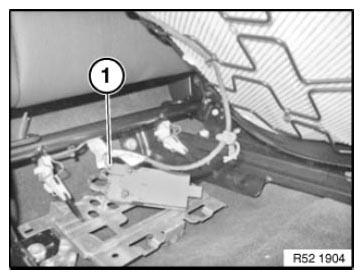

Optional equipment with seat heating only:

NOTE: For a better overview, the control unit is shown removed.

Unfasten plug connection (1) and disconnect.

Fig 5: Identifying Seat Control Unit Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
