51 11 183 Removing and installing (replacing) ornamental grille for bumper panel (side), Luxury Line

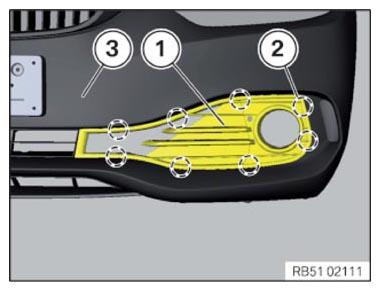

Release ornamental grille (1) at latch mechanisms (2) and pull out of bumper panel (3).

Fig 1: Ornamental Grille, Latch Mechanisms And Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (arrow) at ornamental grille (1) must not be missing or damaged.

Fig 2: Ornamental Grille Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

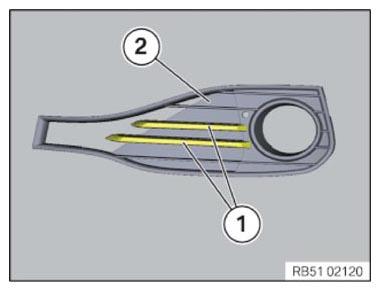

Disengage and remount trims (1) of ornamental grille (2).

Fig 3: Ornamental Grille Trims

Courtesy of BMW OF NORTH AMERICA, INC.
