51 11 183 Removing and installing (replacing) M Aerodynamic package ornamental grille for bumper panel (side)

Necessary preliminary tasks:

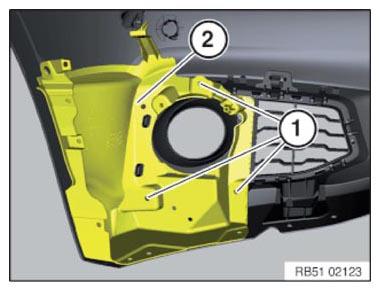

Unfasten screws (1) and take off trim (2).

Fig 1: Ornamental Grille Trim And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

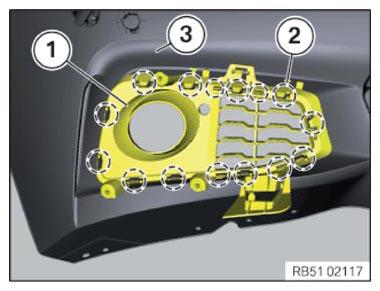

Release ornamental grille (1) at latch mechanisms (2) and pull out of bumper panel (3) towards the rear.

Fig 2: Ornamental Grille, Latch Mechanisms And Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.
