63 12 860 Replacing control unit for left xenon headlight

WARNING: Version with xenon lighting system: Danger to life due to high voltage! Disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Comply with notes and notes on handling EXTERIOR LIGHTS .

IMPORTANT: Read and comply with INFORMATION ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE !

Necessary preliminary tasks:

Remove LEFT HEADLIGHT

NOTE: Graphics shown on the F32 by way of example, deviations in detail are possible in other models.

Release screws (1).

Tightening torque 63 12 3AZ .

Remove control unit for xenon headlight (2) upwards from headlight (3).

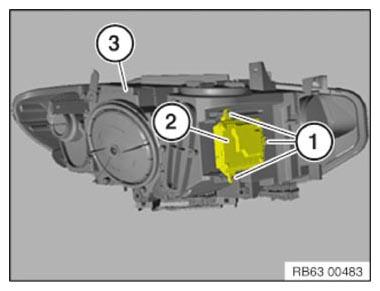

Fig 1: Removing Control Unit For Xenon Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

When installing control unit for xenon headlight (1), make sure gasket (2) is correctly seated.
