51 11 183 Removing and installing (replacing) ornamental grille for bumper panel, basic version (side)

Release ornamental grille (1) at latch mechanisms (2) and pull out of bumper panel (3).

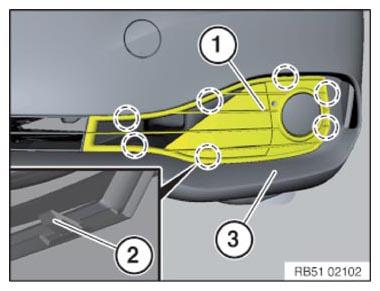

Fig 1: Ornamental Grille, Latch Mechanisms And Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (arrow) at ornamental grille (1) must not be missing or damaged.

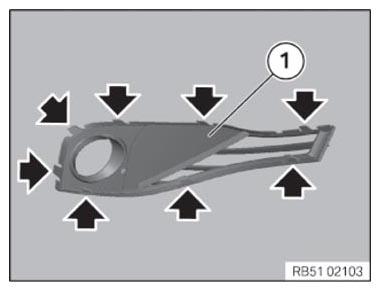

Fig 2: Ornamental Grille Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
