51 13 316 Removing and installing or replacing trim strip on roof gutter at left or right

Removal:

Pull sealing (1) out of trim strip (2).

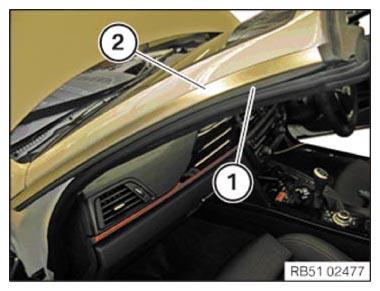

Fig 1: Identifying Trim Strip And Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully feed trim strip (1) out of edge protection (2) and remove.

Fig 3: Identifying Trim Strip And Edge Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carefully feed trim strip (1) into edge protection (2).

Fig 4: Identifying Trim Strip And Edge Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Fig 5: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Fit sealing (1) in trim strip (2).

Fig 6: Identifying Trim Strip And Sealing

Courtesy of BMW OF NORTH AMERICA, INC.
