51 71... Removing and installing/replacing left or right rear side window water drain

Necessary preliminary tasks:

Removal:

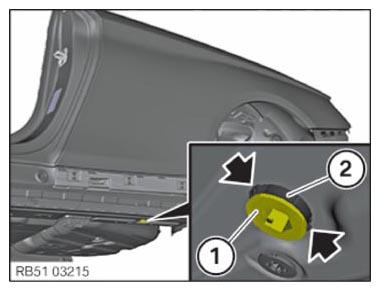

Undo seal plug (1).

Loosen latch mechanisms and press through the water drain (2) towards the inside.

Fig 1: Identifying Water Drain Seal Plug

Courtesy of BMW OF NORTH AMERICA, INC.

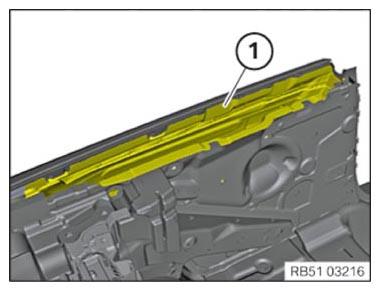

Unclip and remove water drain (1) from side panel.

Fig 2: Identifying Side Panel Water Drain

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert water drain (1) and clip into side panel.

Fig 3: Identifying Side Panel Water Drain

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Water ingress!

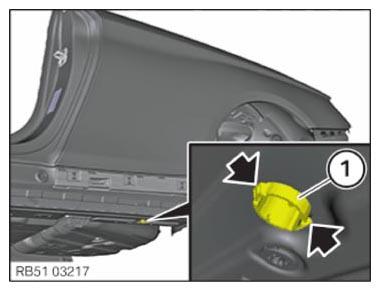

Insert water drain (1) in floor panel and make sure the latch mechanism engages correctly.

Fig 4: Locating Water Drain

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten seal plug (1).

Make sure latch mechanisms are correctly positioned on the water drain (2).

Fig 5: Identifying Water Drain Seal Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
