28 40 000 Removing and installing or replacing clutch cover (GS7D36SG)
Any dirty parts must be cleaned before removing the clutch cover.
After completion of work, check oil level ..
Use only the approved DCTF-1 Pentosin (P/N 83 22 2 147 477).
Failure to comply with this instruction will result in serious damage to the twin-clutch gearbox.
Installation note:
- Removal and installation of clutch cover:
Replace shaft seal for clutch cover , O-ring and snap ring.
- Replacement clutch cover:
Replace as a single assembly only (incl. radial shaft seal, O-ring, bearing, retaining plate and snap ring).
Necessary preliminary work
- Remove twin-clutch gearbox
To prevent the gearbox oil from spilling out, tilt the gearbox back before removing the clutch cover.
Installation note:
After completing work, add transmission oil and check oil level . .
Lever snap ring (1) out of housing with a suitable tool.
Installation note:
Replace snap ring.
Graphic shows: Twin-clutch gearbox S65 Slip bush 23 0 390must be used when clutch cover is removed and installed.
Pull clutch cover with special tool 13 5 250 and adapter 54 0 163 out of housing.
Graphic shows: Twin-clutch gearbox S65 Remove oil fouling with fluff-free cloth.
Clean snap ring groove before installing clutch cover.

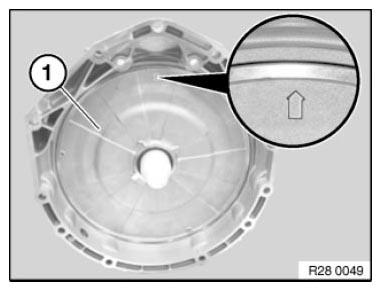

Press clutch cover (1) into housing with arrow pointing up and strike evenly with a plastic hammer.
Then secure clutch cover with snap ring.
Make sure snap ring is correctly fitted.
Installation note:
Moisten O-ring and radial shaft seal with gearbox oil.
