28 00... Overview of transmission housing (GS7D36SG)

WARNING: This page is about a different variant/trim than selected.

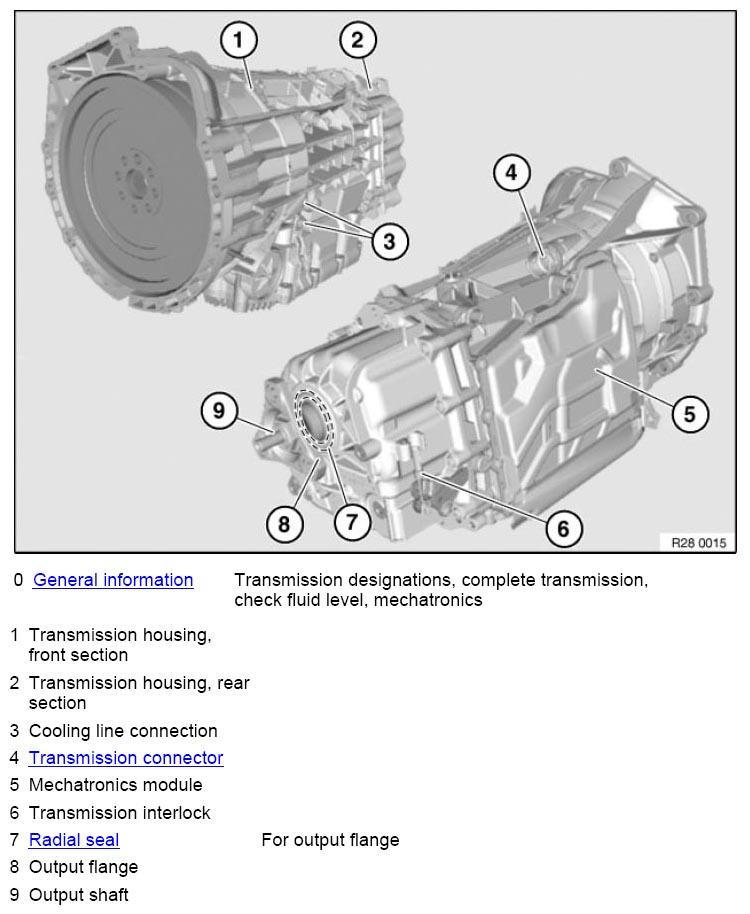

Fig 1: Overview Of Transmission Housing
G06905058Courtesy of BMW OF NORTH AMERICA, INC.
