17 21 500 Rinse transmission oil cooler with lines (GA8HP automatic transmission)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: Carry out the operations listed when:
Install a new or exchange transmission.

Procedure:

Automatic transmission removed.

Connect appropriate adapters (see description below) to oil lines exiting from automatic transmission.

Use quick-release coupling to connecting line 17 2 019 from oil dispenser unit.

Use quick-release coupling to drain line 17 2 018 .

Hold and direct open end of drain line into a suitable collecting vessel.

Using oil dispenser unit, flush approx. 1 liter of TRANSMISSION FLUID through oil lines and transmission oil cooler.

Reposition quick-release couplings.

Flush oil lines/transmission oil cooler in opposite direction with approx. 1 liter of TRANSMISSION FLUID .

Disconnect quick-release couplings.

Remove adapter.

Recycling:

Never use flushing oil.

Dispose of flushing oil according to country-specific waste disposal regulations.

Press hydraulic lines (1) into adapters (2).

Slide clamping bracket (3) into guides and secure with screw (4).

Fig 1: Identifying Hydraulic Lines, Adapters, Clamping Bracket And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

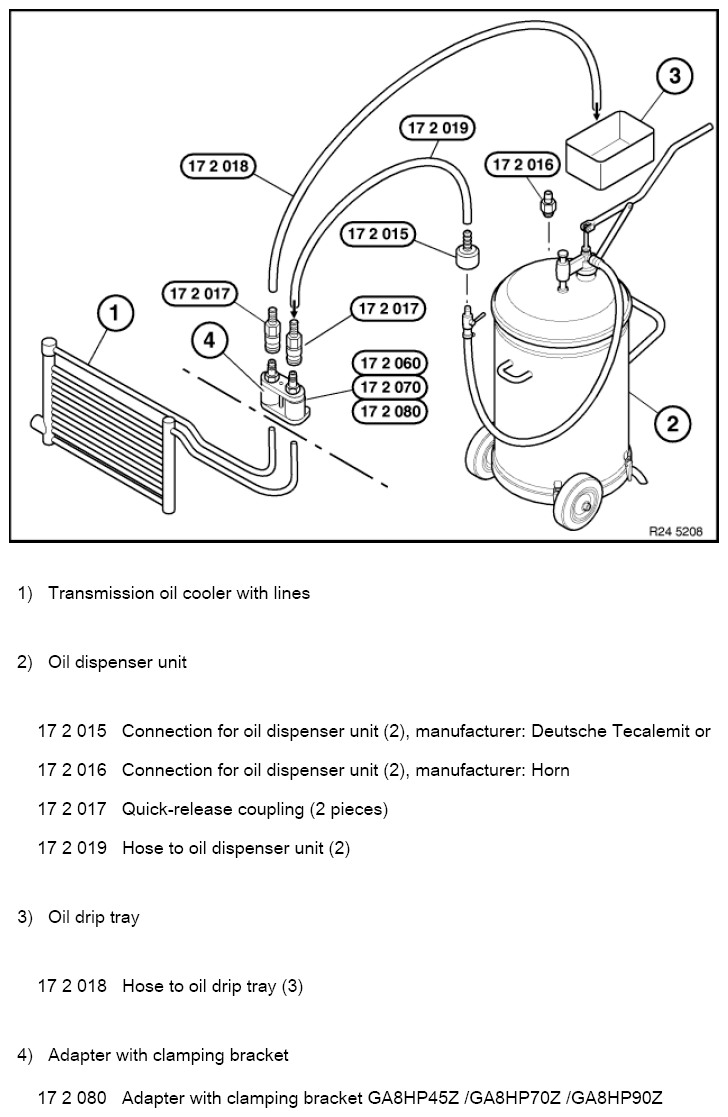

Arrangement of flushing device:

Fig 2: Identifying Transmission Flushing Device Arrangement

Courtesy of BMW OF NORTH AMERICA, INC.

Special tools required:

NOTE: Carry out the work steps listed when:
Installing a new or exchange transmission.
Flushing can only be carried out when the automatic transmission is removed.

Procedure:

Automatic transmission removed.

Connect appropriate adapters (see description below) to oil lines exiting from automatic transmission.

Use quick-release coupling to connecting line 17 2 019 from oil dispenser unit.

Use quick-release coupling to connect drain line 17 2 018 .

Hold and direct open end of drain line into a suitable collecting vessel.

Using oil dispenser unit, flush approx. 1 liter of TRANSMISSION FLUID through oil lines and transmission oil cooler.

Reposition quick-release coupling.

Flush oil lines/transmission oil cooler in opposite direction with approx. 1 liter of TRANSMISSION FLUID .

Disconnect quick-release coupling.

Remove adapter.

NOTE: Dispose of flushing oil correctly.
Do not reuse under any circumstances.
