0490002 000012 Foil Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (Set of films for special tool board I)

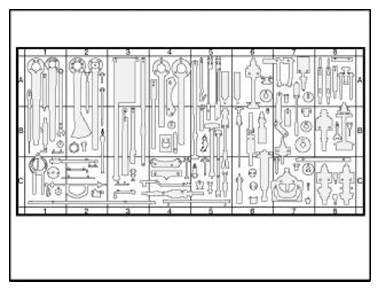

Fig 1: Identifying Foil (0490002)
G09868460Courtesy of BMW OF NORTH AMERICA, INC.
