51 22 370 Removing and installing/replacing cover (seal) on rear door at bottom left or right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Detach seal (1) in direction of arrow from rear door.

Installation:

Clip clips (3) of cover correctly into bores.

Clips must not be damaged.

Installation:

Upper seal (2) must be mounted over seal (1).

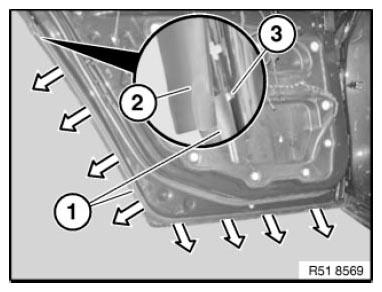

Fig 1: Detaching Seal From Rear Door
G08508178Courtesy of BMW OF NORTH AMERICA, INC.
