41 00... Frame Alignment Control Body Dimensions

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2018 BMW 650i, 2018 BMW 640i, 2017 BMW 650i, 2017 BMW 640i, and 2016 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.

Dimensions in mm.

Measurement tolerances:

≤ 1000 mm ± 1.5 mm
≥ 1000 mm ± 2.5 mm

The control points shown serve to check the body and the set of attachments.

The specified dimensions/measurements refer to the centerpoint of the bore/screw.

Under Body View 1

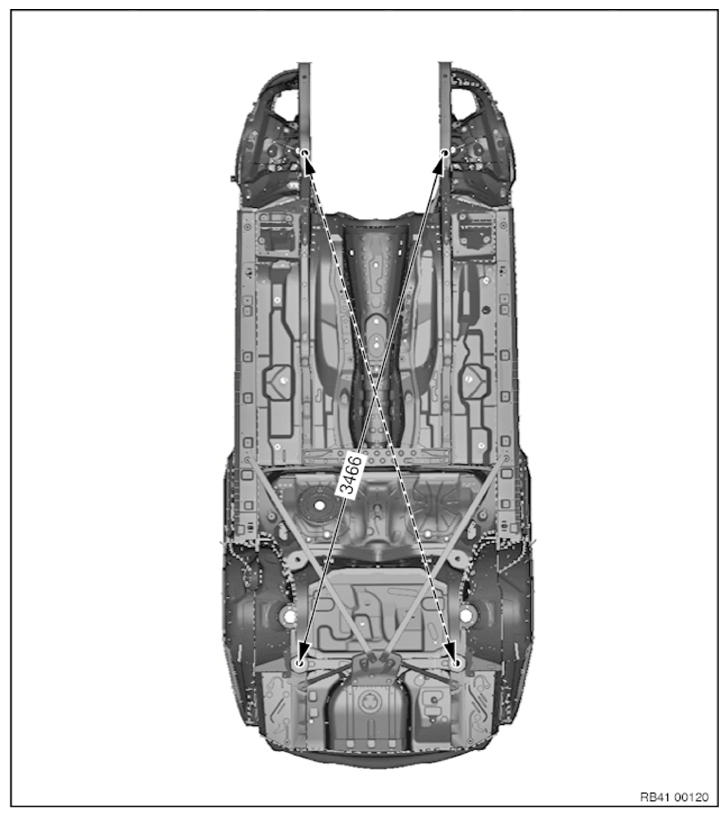

Fig 1: Under Body Frame Alignment Dimensions And Measurement Points (Under Body View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

Under Body View 2

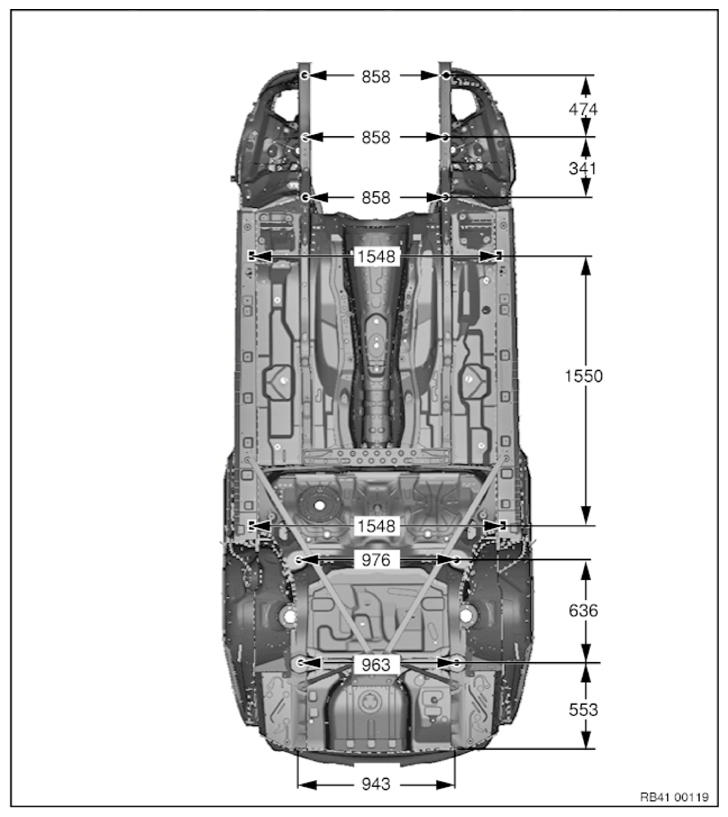

Fig 2: Under Body Frame Alignment Dimensions And Measurement Points (Under Body View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Top View, Front End

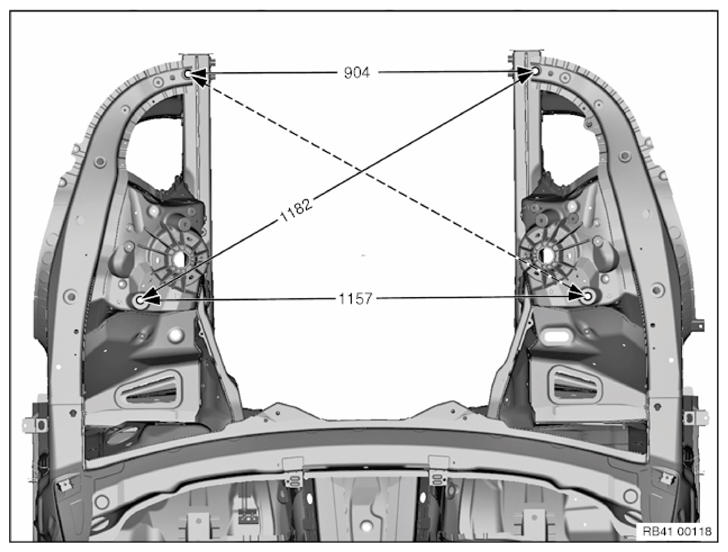

Fig 3: Engine Compartment Frame Alignment Dimensions And Measurement Points (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.
