22 32 001 Replacing rubber mount for gearbox mount (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CROSS MEMBER .

Release screws (1).

Remove rubber mount.

Tightening torque 22 32 2AZ .

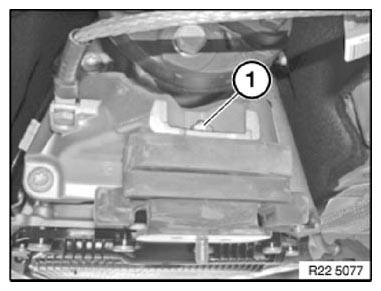

Fig 1: Identifying Rubber Mount And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
