22 11 100 Replacing right engine support arm (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Secure engine in INSTALLATION POSITION
Remove rear UNDERBODY PROTECTION
Remove right COVER

Release screws (1).

Tightening torque 22 11 3AZ .

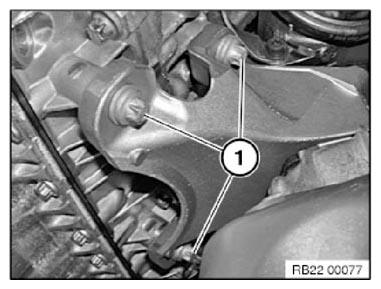

Fig 1: Identifying Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) from engine support arm at front engine compartment.

Remove engine support arm.

Tightening torque 22 11 3AZ .

Fig 2: Identifying Engine Support Arm Screw (Front Engine Compartment)

Courtesy of BMW OF NORTH AMERICA, INC.
