SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 04 05 (175)

Consisting of:

1= 0495263  Bridge

NOTE: Available as part of set of special tools 22 1 040 -22 1 040 -> (83 30 0 495 240) only.

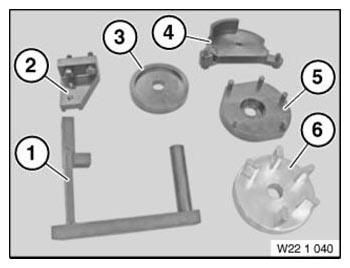

Fig 1: Identifying Device (221040)
G11167002Courtesy of BMW OF NORTH AMERICA, INC.

2= 0495264  Holder

NOTE: Available as part of set of special tools 22 1 040 -22 1 040 -> (83 30 0 495 240) only.

3= 0495265  Washer

NOTE: (Thrust washer) Available as part of set of special tools 22 1 040 -22 1 040 -> (83 30 0 495 240) only.

4= 0495266  Washer

NOTE: (Profile washer) Only available via complete tool set 22 1 040 -> (83 30 0 495 240).

5= 0495267  Washer

NOTE: (Washer with cylindrical pins) Only available via complete tool set 22 1 040 -> (83 30 0 495 240).

6= 0496792  Washer

NOTE: For installing rubber mount in transfer box housing.

In conjunction with: 22 1 044, 33 4 465/466 = 0495266
