SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 15 99 (483)

Consisting of:

3= 0493698  Synchronizing key

NOTE: For pulling out the transfer box rubber mount - Replaced by 22 1 018  (0 493 807)

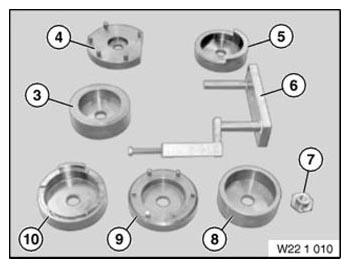

Fig 1: Identifying Tool (221010)
G11167009Courtesy of BMW OF NORTH AMERICA, INC.

3= 0493699 Washer

NOTE: (Support disc) For installing the transfer box rubber mount - series: E53 - Replaced by 22 1 019  (0 493 808)

3= 0493700 Synchronizing key

NOTE: For installing the transfer box rubber mount - series: E53

4= 0493701 Synchronizing key

NOTE: For installing the transfer box rubber mount - series: E46/16, E83

6= 0493702 Bridge

NOTE: For pulling out the transfer box rubber mount. Series: E46/16, E83

5= 0493746 Washer

NOTE: Series: E46/16

7= 0493806 Nut

NOTE: For installing and removing the transfer box rubber mount - series: E46/16

8= 0493807 Bush

NOTE: For pulling out the transfer box rubber mount - series: E53, E83, E90

9= 0493808 Washer

NOTE: For installing the transfer box rubber mount - series: E53

10= 0494780 Washer

NOTE: For installing the rubber mount in the transfer box-transfer box: ATC400 Model series: E83
